RUBI Professional Tile Cutter TZ 850 Series with Bag | SKU: 17952
Experience pure power and flawless accuracy on the job site with the RUBI Professional Tile Cutter TZ 850 Series. Globally recognized as the most advanced manual tile cutter on the market, this heavy-duty system is custom-engineered for elite tiling contractors, stone fabricators, and commercial landscapers executing high-volume layouts with dense, modern large-format tiles.
Combining next-generation metallurgy with an ultra-rigid steel chassis, the TZ 850 delivers an unprecedented 1,500 kg (3,306 lbs) of maximum breaking force. This monumental separator power allows you to effortlessly score and snap tough materials up to 21 mm thick with just one hand, drastically speeding up your layout prep. Upgrade your fleet by purchasing your genuine RUBI Professional Tile Cutter TZ 850 at Diamach.
Key Product Features & Contractor Benefits

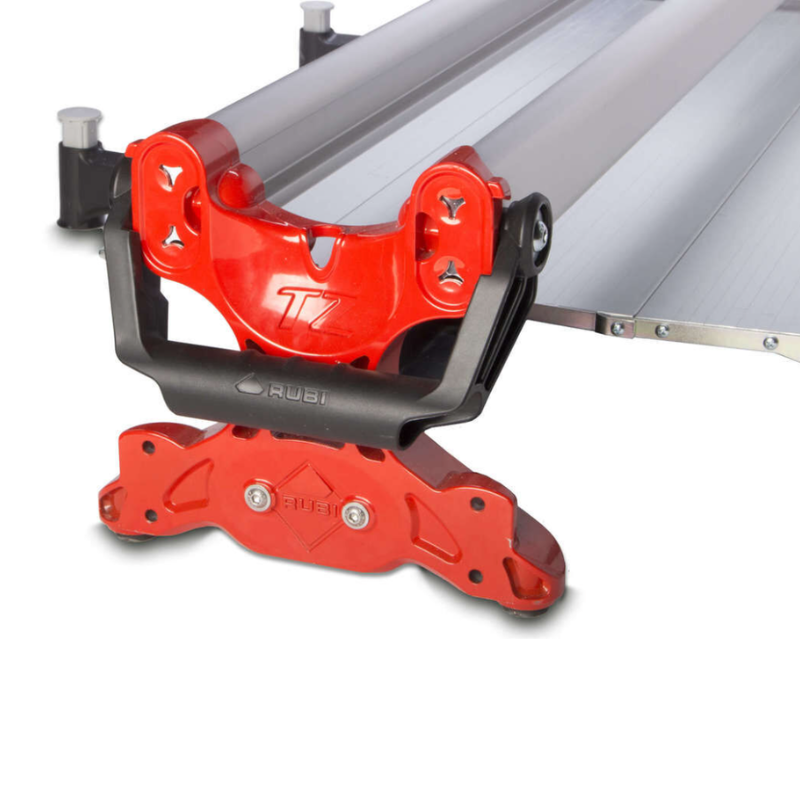

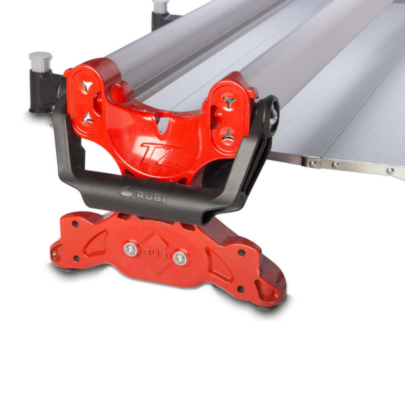

- Patented One-Handed Breaker Assembly: Features an advanced, exclusive breaker mechanism that allows operators to score and execute maximum-pressure breaks single-handedly, keeping your other hand completely free to support massive tile slabs.
- Precision Extruded Aluminium Guides: Engineered with optimized geometry that eliminates flex, reduces user effort, and provides completely fluid, frictionless scoring head travel—even when pushing down under intense load.

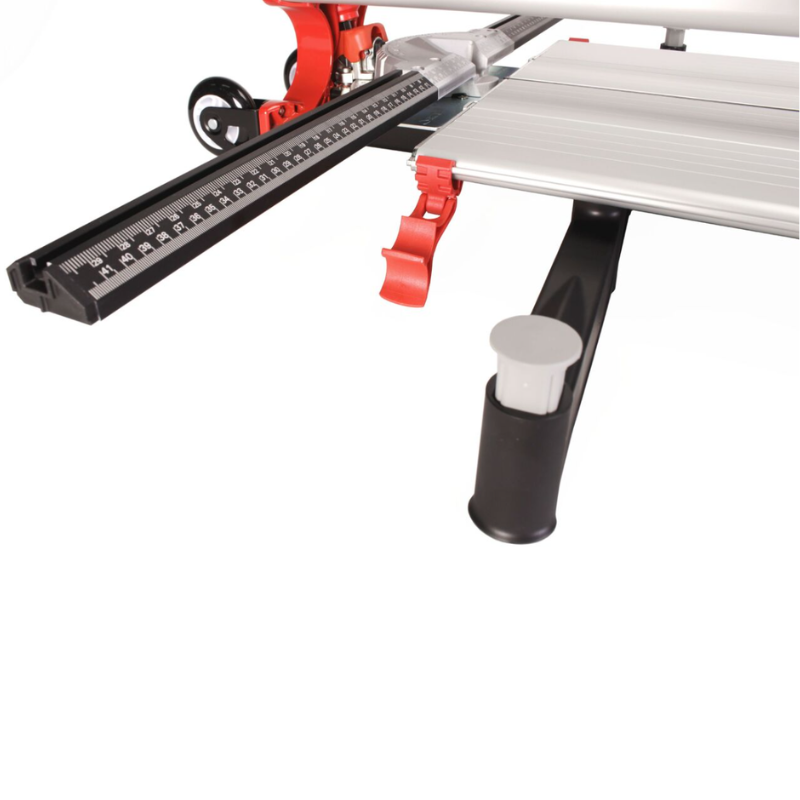

- Swivel Square with Central Pivot: Achieve dead-accurate miters and repeatable angle cuts instantly. The heavy-duty rotating square mechanism facilitates ultra-fast measurement lockouts from -45° to 0° to +45°.
- Rugged, Foldable Workshop Chassis: Built with folding aluminium extensions and a robust steel core to provide a wide, unyielding placement base for large ceramic panels while preserving pack-down portability.
- Job Site Mobility Wheels: Equipped with integrated heavy-duty rubber wheels running on premium bearings, plus a comfortable towing handle to eliminate physical transport strain.
Technical Product Specifications
| Attribute | Specification Details |
|---|---|
| Brand / Series | RUBI Tools — TZ Advanced Series |
| Manufacturer SKU | 17952 (EAN: 8413797179569) |
| Straight Cutting Length Capacity | Up to 850 mm (85 cm) |
| Diagonal Cutting Limit | 600 mm x 600 mm (60 x 60 cm tiles) |
| Max Material Thickness Clearance | 3 mm to 21 mm * (Material dependent) |
| Maximum Separator Pressure | 1,500 kg / 3,306 lbs of breaking force |
| Included Accessories | 8mm & 22mm PLUS Extreme Scoring Wheels, Reinforced Textile Carry Bag |
| Manufacturing Origin | Expertly Engineered and Made in Spain |
Why Invest in the Elite RUBI TZ-850 System?
Modern commercial porcelain, vitrified stone, and landscaping panels are intentionally fired to be incredibly hard, making them notorious for twisting or wandering under standard manual cutters. Attempting to use under-powered tools causes extensive chattering, jagged edges, and highly expensive material blowouts.
The RUBI TZ Series completely overcomes these limitations through its unmatched structural resistance to bending. By combining it with specialized abrasives, you protect your inventory and unlock clean, factory-grade edges on every pass. If your projects require even larger capacities for massive porcelain sheets or masonry formats, explore the full selection of professional Saws and Power Cutting Tools at Diamach to find matching 1020mm, 1300mm, or alternative 850mm rail configurations.
🛒 Buy Authentic RUBI Trade Gear Locally
Don't let subpar tooling slow down your crew. Secure the ultimate manual cutting machine. Buy your authentic RUBI Professional Tile Cutter TZ 850 (17952) directly from the Diamach Online Store with fast dispatch across Australia and New Zealand.
