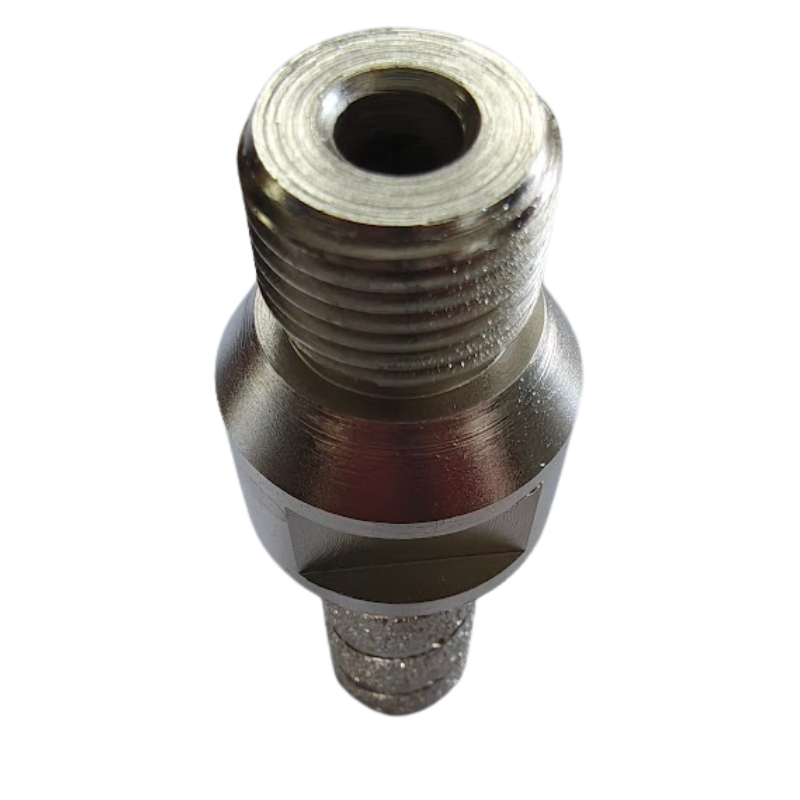

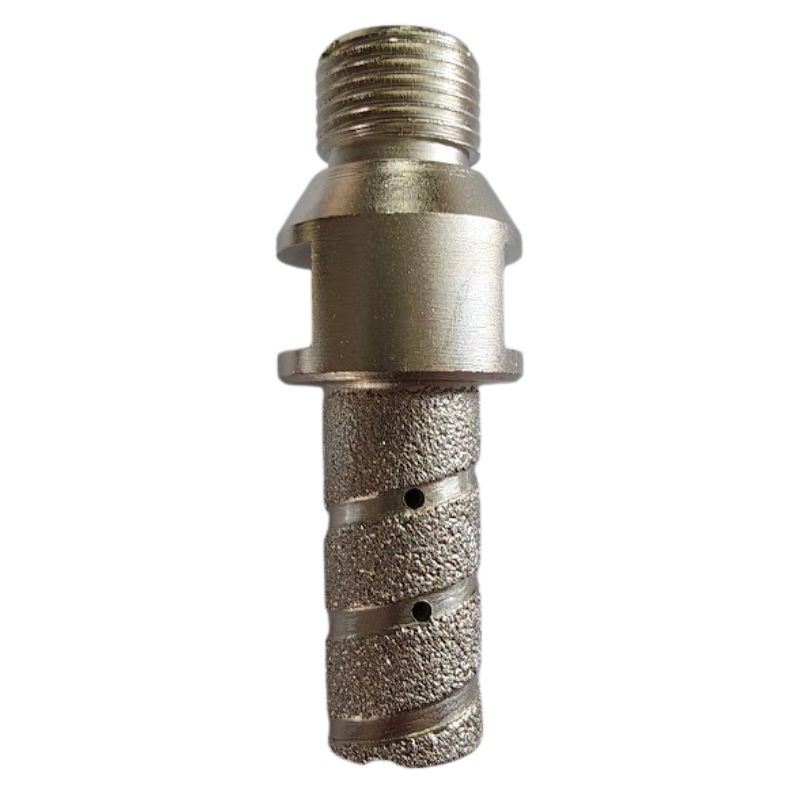

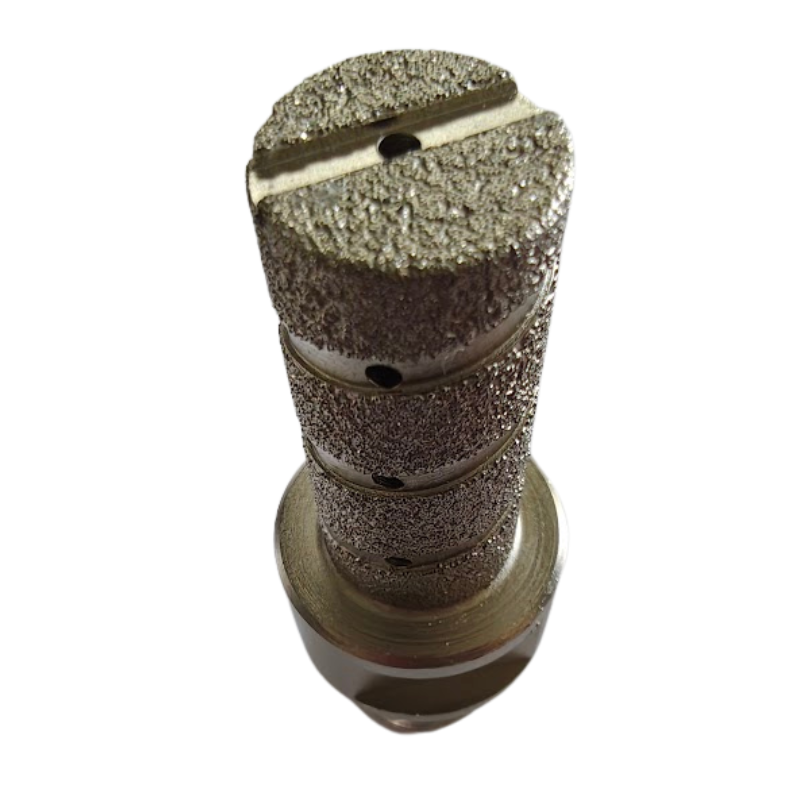

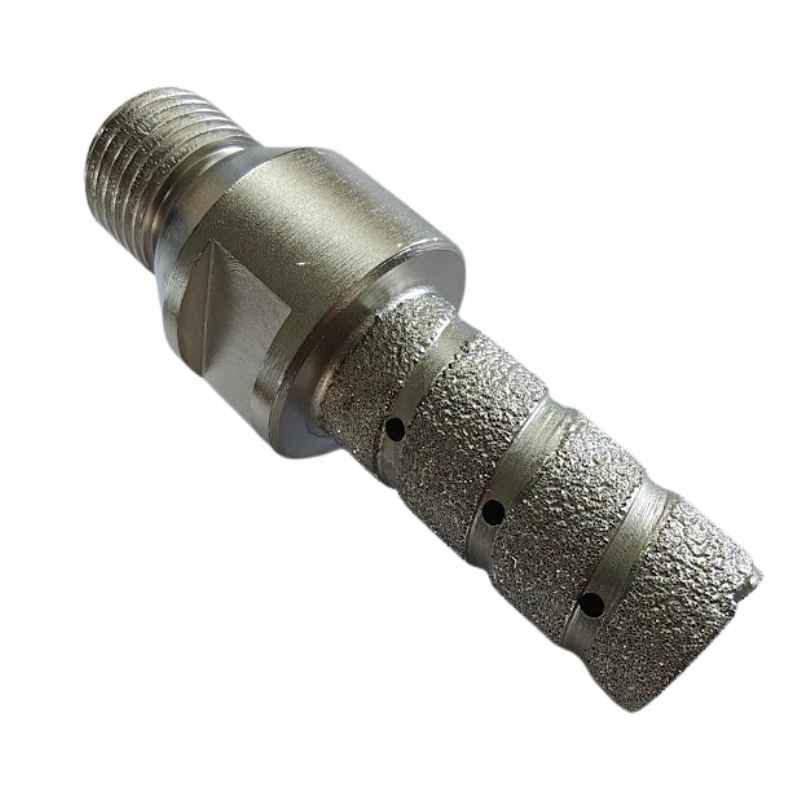

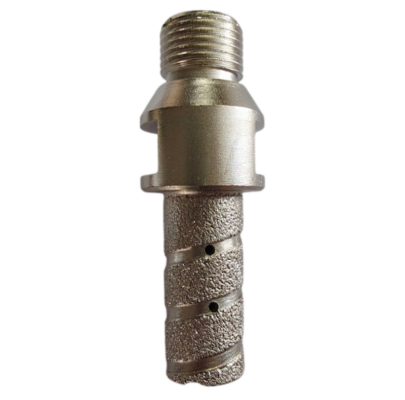

The DIAMACH VFB2045 is a professional-grade, vacuum brazed diamond finger bit engineered for aggressive wet stock removal, internal profiling, and pocket cutting in natural stone fabrication. Utilizing premium vacuum brazing technology, this bit features surface-fused diamond crystals that deliver an incredibly fast, clean cut on soft to medium-hard stones without causing edge chipping.
Technical Specifications
• Part Number / SKU: VFB2045
• Abrasive Technology: Vacuum Brazed Diamond Matrix
• Diameter (D): 20 mm
• Working Height / Length (H): 45 mm
• Grit Specification: 50 Coarse Grit
• Operation Mode: Wet processing only
• Target Substrates: Marble, limestone, travertine, soft sandstone, and ultra-compact porcelain slabs
Key Features & Core Benefits
• High-Exposure Vacuum Brazing: Unlike traditional sintered finger bits that require a hard metal bond to wear away, vacuum brazing bonds a dense layer of coarse 50-grit diamonds directly to the steel core. This exposes the maximum diamond surface area for aggressive, immediate cutting action.
• Chip-Free Marble Profiling: The 50-grit matrix is finely balanced to rapidly hog out internal sink cutouts, radius corners, and back-splashes in delicate marble worktops without causing structural micro-fractures or edge blowout.
• Optimal 20mm Profile: The 20mm diameter provides exceptional structural rigidity under high lateral pressure, minimizing tool deflection, spindle run-out, and vibration during high-speed CNC or manual router passes.
• Efficient Waste Clearance: Built with internal water feed paths, it floods the cutting zone to quickly flush away highly abrasive stone slurry, keeping the tool cool and significantly extending its operational life.
