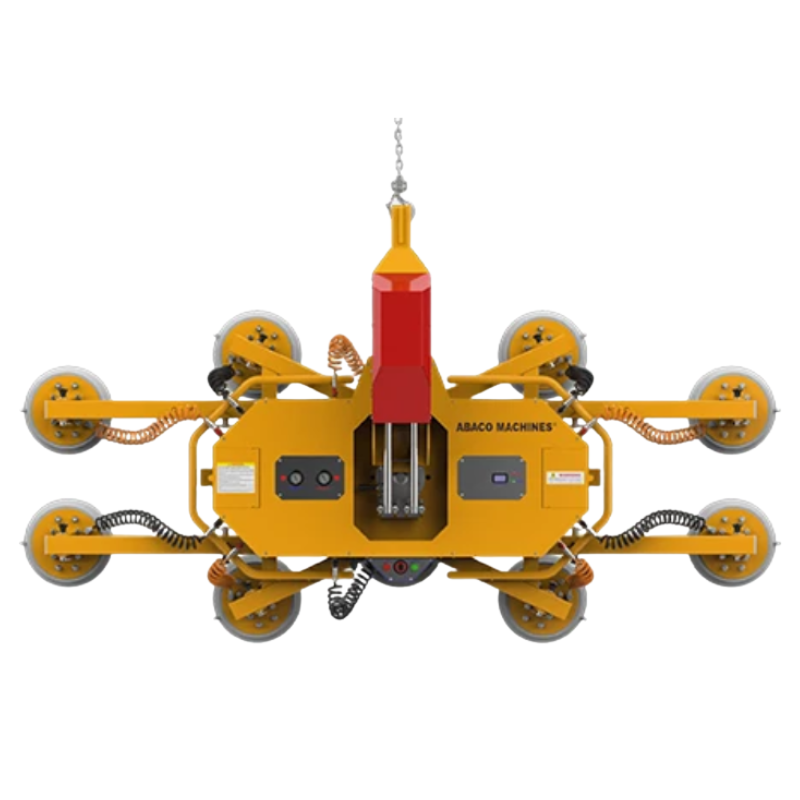

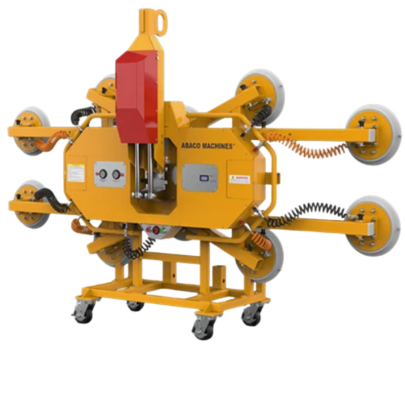

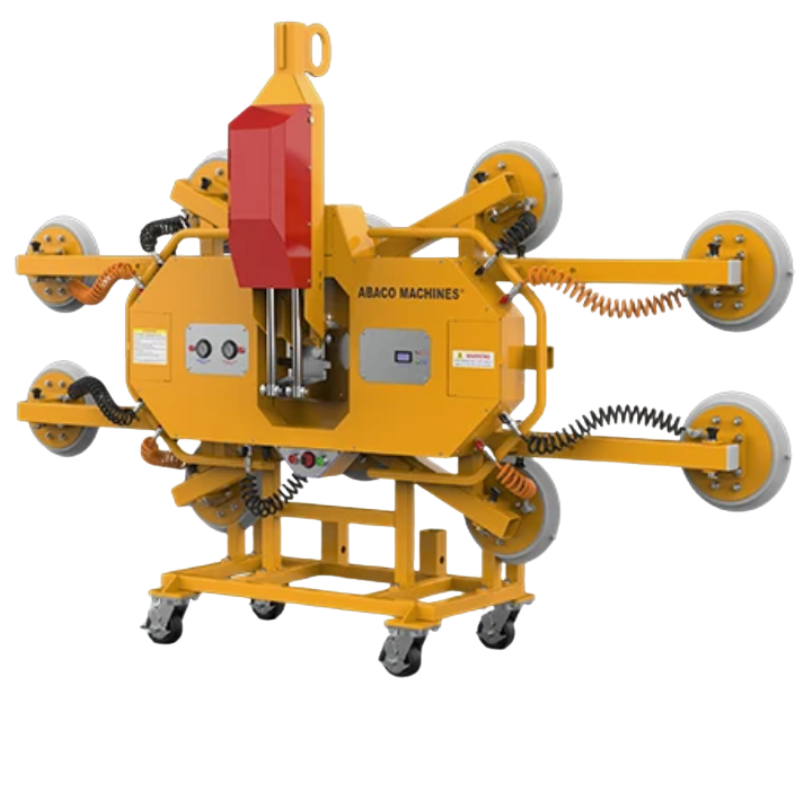

ABACO Vacuum Lifter Pro Without Battery Grey Rubber DVL1000PROWOB
The ABACO Vacuum Lifter Pro DVL1000PROWOB is a professional large glass sheet vacuum lifter designed for lifting, moving and positioning large glass panels safely and efficiently. With a 1000kg lifting capacity, dual independent vacuum systems and 10 adjustable vacuum pads, the Vacuum Lifter Pro provides a flexible solution for demanding glass installation and material-handling applications.
This without-battery version is designed for professional users who require the DVL1000-PRO configuration without the battery supplied as part of the standard battery-powered setup.
Key Features
- ABACO Vacuum Lifter Pro
- Model: DVL1000PROWOB
- Grey rubber vacuum pads
- Up to 1000kg lifting capacity
- Dual independent vacuum systems
- 10 adjustable vacuum pads
- Detachable and repositionable vacuum pads
- Wireless remote control
- Powered horizontal-to-vertical tilting
- Continuous 360° rotation
- Two electric cylinders for powered tilting
- Visual and audible alarm system
- Air-blow vacuum release function
- Designed for large glass sheets
- Without battery configuration
1000kg Professional Vacuum Lifter
The ABACO DVL1000-PRO is engineered for demanding large-format glass handling applications, with a maximum lifting capacity of 1000kg (2200lb). The system uses two independent vacuum circuits to provide continued vacuum operation if one system encounters an issue.
The 10 vacuum pads distribute suction across the material and can be adjusted to accommodate different glass dimensions.
10 Adjustable Vacuum Pads
The DVL1000-PRO is equipped with 10 vacuum pads designed to distribute suction across large or fragile glass sheets. The pads can be detached and repositioned to suit different panel sizes and configurations.
This adjustable setup provides flexibility for professional glazing, glass installation and large-panel handling applications.
Powered Tilting and 360° Rotation
The Vacuum Lifter Pro features powered movement for controlled material positioning. Two electric cylinders allow the unit to transition between horizontal and vertical positions, while an electric motor provides continuous 360° rotation.
These functions are designed to simplify positioning during large glass installation and handling operations.
Wireless Remote Control
The integrated wireless remote control allows the operator to control the lifter from a distance, providing greater flexibility when lifting, rotating and positioning large glass panels.
Independent Vacuum Systems and Safety Alerts
The dual independent vacuum systems are designed to provide continued operation if one vacuum system experiences an issue. The lifter also incorporates visual and audible alarms to assist with monitoring during operation.
The built-in air-blow release function allows the vacuum pads to detach from the glass surface quickly and gently after positioning.
Suitable Applications
The ABACO DVL1000PROWOB is suitable for professional applications including:
- Large glass sheet lifting
- Glass panel installation
- Window installation
- Curtain wall installation
- Glass facade projects
- Interior glass installation
- Glass manufacturing
- Large-format glass handling
- Professional glazing
- Glass transportation and positioning
Product Specifications
| Specification | Details |
|---|---|
| Brand | ABACO |
| Product | Vacuum Lifter Pro |
| Model / SKU | DVL1000PROWOB |
| Product Type | Professional Glass Vacuum Lifter |
| Rubber Colour | Grey |
| Lifting Capacity | Up to 1000kg / 2200lb |
| Vacuum Systems | 2 independent systems |
| Vacuum Pads | 10 adjustable pads |
| Rotation | 360° continuous |
| Tilting | Horizontal to vertical |
| Tilt System | 2 electric cylinders |
| Control | Wireless remote control |
| Safety System | Visual and audible alarms |
| Release System | Air-blow release |
| Battery | Without Battery |
| Origin | Vietnam |
| Warranty | 1 Year |
